NeoLIVE N5 Series

5-CH LIVE STREAMING SWITCHER

HDMI/SDI/Multi-Functional Input

The NeoLIVE N5 series introduces a newly upgraded multifunctional broadcast switcher with a new laptop-style design. It features a 10.1-inch

flip-up touch screen, and the N5S model includes 8 inputs with 4 x inputs as input option, which is 4 x SDI and 4 x HDMI inputs. The N5 model has 4 HDMI inputs, with the first two input supporting 4K, and both models come with 2 HDMI output ports. Additionally, the N5S model is equipped with 1 x SDI output port. Both models support NDI input, support Lower Third dynamic text overlay, and MV preview output, along with recording. The built-in hardware streaming engine is compatible with various streaming software to deliver high-quality multi-camera production for multi-platform live streaming.

● 10.1-inch Flip-up Touch Screen for Easy Operation

● Support SUPER SOURCE Source Output

● Support NDI Input with Low-Latency Video via Ethernet

● N5S Features 4 in 8 optional Input channels

● Support Type-C USB 3.0 Lossless Capture

● Support 4K Input for More Signal Sources Connection

● UVC Camera & Remote Camera Access

● Built-in Media Player for Direct Playback & Serve As Input Sources

● Supports PGM output and variable channel MV output

● Supports USB & HDD Recording

● Built-in Portrait & Landscape Screen Rotation & Switch

● Built-in Web Server for Remote Control

● Support Dual Channel Stream via Ethernet

SUPER SOURCE Output
NeoLIVE N5 Series Support super source multi-input combined as output.

Multi-Functional Input

The NeoLIVE N5 Series features a multi-functional input that can directly play media video sources

from a USB drive or connect to a UVC camera without converters. It also supports NDI, SRT, and RTMP protocols to

stream remote video feeds into the switcher and use them as an input source, achieving local live streaming.

N5S Features 4 in 8 optional Input channels

With 4 x 3G-SDI ports and 4 HDMI ports, the N5S allows 4 x flexible input options from the

8 x inputs, offering more application versatility. HDMI ports 1 and 2 support 4K input.

Dual Channel Live Streaming

The NeoLIVE N5 Series built-in hardware streaming engine allows streaming directly through Ethernet without

a computer. Once you’ve selected your live streaming platform, simply enter the streaming key into the built-in web

server to stream in high quality on platforms like TikTok, Instagram, YouTube, or Facebook with no frame drops.

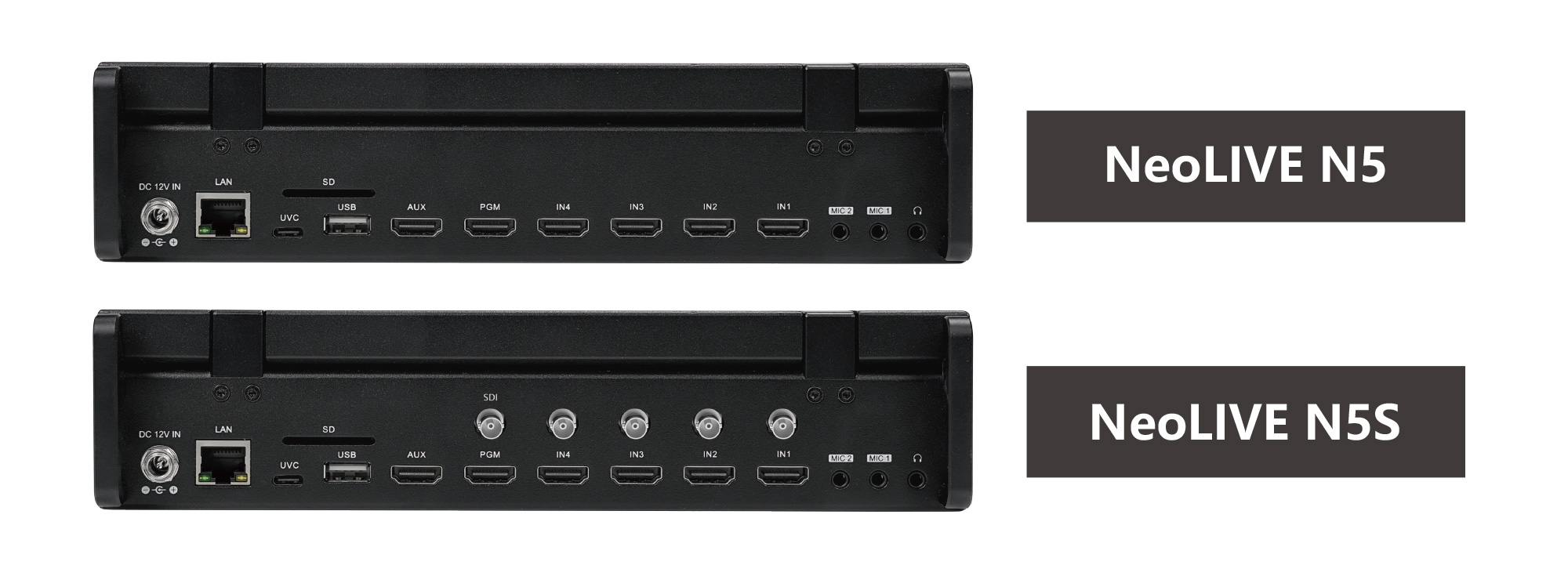

N5S Support 3xOutput and Multi-Angle Monitoring

The NeoLIVE N5 series features dual HDMI outputs and 1 x SDI output, allowing separate PGM

and MV outputs. This setup enables up to three display terminals to be used simultaneously,

making it ideal for live scenarios that require multi-monitor viewing.

Supports NDI Input (Optional)

The NeoLIVE N5 Series supports NDI input, which allows for low-latency video

acquisition via Ethernet cable, simplifying the cabling process.

Built-in Media Playback

The NeoLIVE N5 Series includes a built-in media player that can play videos

from storage devices and use those videos as input sources.

Audio Input Interface for Monitoring

Equipped with a headphone monitoring interface, the NeoLIVE N5 Series allows

real-time monitoring of any input or output audio channel.

Joystick PTZ Camera Control

It supports up to four PTZ cameras control, allowing for smooth

multi-camera switching with joystick control.

Multiple Transition Effects

The NeoLIVE N5 Series offers a variety of transition effects, including FADE,

WIPE, DIP, and DVE. It also has a duration button to adjust transitions from

0.5 to 1.5 seconds, creating smooth scene changes.

Built-in Mixer for Real-time Audio Mixing

The NeoLIVE N5 Series includes a professional audio mixer, supporting both

AFV and MIX audio modes, allowing for seamless mixing of HDMI embedded

audio and external audio sources.

Lower Third Dynamic Overlay

The NeoLIVE N5 Series supports multiple Lower Third dynamic

overlays for richer visual effects and simple transitions.

Virtual Chroma Key Algorithm

NeoLIVE N5 Series is equipped with a powerful cinematic-level chroma

key algorithm, which uses a color picker to sample the background color

and automatically generate keying parameters, providing precise edge

and spot control, making it a great tool for news broadcasts or live

presentations!

Applications

E-commerce live streaming

NeoLIVE N5 Series is the best choice for E-commercial live streaming studio, which can realize multi-scene switching during the product presentation online, and it is compact and portable design make it more flexible in the room-limited studio room.

Various Event Performances

The lightweight nature of the NeoLIVE N5 Series makes it easy to transport and deploy for various events and performances. It comes with built-in scene presets that can be easily accessed and saved. Additionally, it can record a series of instructional videos, which can be copied to a USB drive or external hard drive for future use.

Conference Presentation

In Corporate Conference, NeoLIVE N5 Series can support multi-scene switching, like one camera as close-up view, and the other as wide-angle view, and one computer for PPT presentation,and it also support PIP, which can enhance better visual experience.

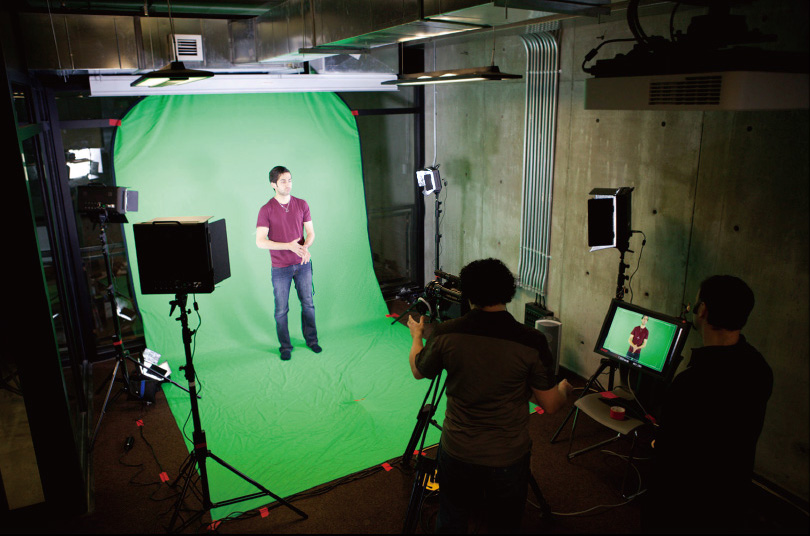

Education Training

The NeoLIVE N5 Series can create virtual teaching scenarios to meet the needs of online education by using multi-camera setups and its one-click chroma key function. Additionally, it can copy a series of recorded educational videos to a USB drive or external hard drive using its live production solution.
