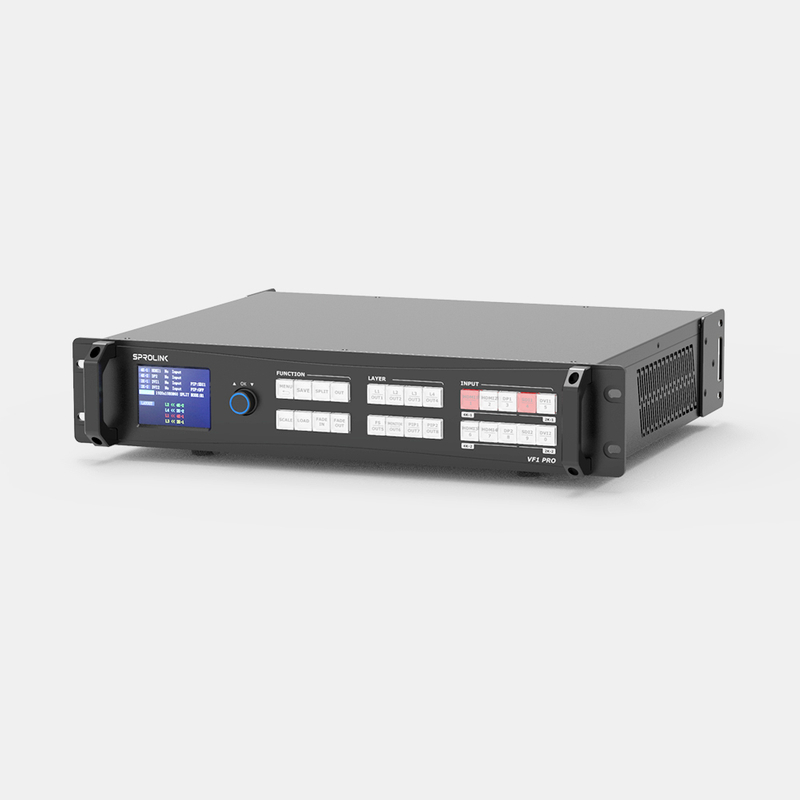

VF1 PRO

4K LED video processor with up to 8 DVI outputs
Inputs modular design covers various necessities
Dual output slots offer 4/8 DVI output channels
Support independent control & flexible splicing
Display up to 6 layers on all outputs
HDMI2.0 DP1.2 and 4K@60Hz inputs with downward capacity
Handle 8k x 2k splicing by single unit
Fade in Fade out switching between any input channel
Monitoring all outputs by single port
Flexible image quality adjustment

Availability:

Quantity:



Inquire Add to Basket

VF1 PRO is a fully modular 4K signal seamless switcher and splicing processor. It inherits the superior performance of VF1, can support 4/8 DVI output channels independent control or splicing.

With the advanced SPROLINK technology, VF1 PRO can support 6 layers in maximum, which can cope with various display application requirements.

Supporting up to 6 UHD inputs and 4 traditional 2K signal inputs. Realizing perfect fade in fade out transition between any input channel.

VF1 PRO is one of the best 4K LED video processors for LED displays with 4 to 8 LED sending cards.

微信图片_20200123174512

微信图片_20200123174522

Application 1: Independent control of multi-screens simultaneously

Assign the outputs to power multiple LED displays simultaneously.

Application 2: Multi-windowing on large splicing screens

Multiple windows overlay on large LED displays up to 8K x 2K

VF1PRO multi-windowing display on 8K2K led video wall

Application 3: Flexible control for stage screens

One processor to control central screen and side screens, ideal for live event stage application

VF1PRO for live event stage applications

Application 4: Live monitor all outputs

Assign any one of the outputs to be the monitor output, for real-time monitoring of the display

VF1PRO real time monitor output

4K 60hz LED video processor video splicing processor multi screen processor LED processor with 8 DVI outputs multi windowing LED video processor 4K LED processor

Connectivity	Input	4K	Standard	4K-1	2x HDMI 2.0（HDCP2.2）	1x DisplayPort 1.2
				4K-2	2x HDMI 2.0（HDCP2.2）	1x DisplayPort 1.2
		2K	Optional	2K-1	1x 3G-SDI	1x DVI (VGA compatible)
				2K-2	1x 3G-SDI	1x DVI (VGA compatible)
	Output	Standard		4x DVI
		Optional		4x DVI
	Comm	LAN		1x RJ45
		USB		1x USB Type A
		RS232		IN	1x RJ45
				LOOP	1x RJ45
Input Resolution	4K	HDMI 2.0	SMPTE: 480i \| 576i \| 720p \| 1080i \| 1080p \| 4K 1K \| 2160p VESA: 1024x768 \| 1280x720 \| 1280x800 \| 1280x960 \| 1280x1024 \| 1400x1050 \| 1600x1200 \| 1920x1080 1920x1200 \| 2048x1152 \| 2560x1600 \| 3840x1080 \| 3840x2160 \| 4096x2160
		DP1.2	SMPTE: 480i \| 576i \| 720p \| 1080i \| 1080p \| 4K 1K \| 2160p VESA: 1024x768 \| 1280x720 \| 1280x800 \| 1280x960 \| 1280x1024 \| 1400x1050 \| 1600x1200 \| 1920x1080 1920x1200 \| 2048x1152 \| 2560x1600 \| 3840x1080 \| 3840x2160 \| 4096x2160
	2K	3G-SDI	480i \| 576i \|720p \| 1080i \| 1080p \| 1080psf
		DVI	VESA: 800x600 \| 1024x768 \| 1280x1024 \| 1600x1200 \| 1920x1080 \| 1920x1200 \| 2048x1152
Output Resolution		SMPTE	720p@25/30/50/60 11 oaop@23.98/24/25/29.97 /30/50/59.94/60 I 21 Gop@30/50/60
		VESA	800x600@60 I 1024x768@60 I 1280x768@60 I 1280x800@60 11280x1024@60 I 1360x768@60 I 1366x768@60 l1400x900@60 I 1600x1050@60 I 1600x1200@60 l1680x1050@60 I 1920x1080@23.98/24/25/29.97 /30/50/59.94/60 I 1920x1200@60 I 2048x1152@60 I 2560x812@60 I 2560x816@60 I 2560x1600@60 I 3840x1080@60I 3840x2160@23.98/24/25/29.97/30/50/60 I 4096x2160@50/60
Standard Supported		HDMI	1.3 \| 1.4 \| 2.0
		DisplayPort	1.1 \| 1.1a \| 1.2
		DVI	1.0 \| 1.1
		VGA	VGA-UXGA
		SDI	SD-SDI \| HD-SDI \| 3G-SDI
Power Supply		AC 100~264V（Typical 110/220V）
		50/60Hz
		20W
Temp.		-25℃~55℃（Typical 25℃）
Humidity		20%~90%
Weight	Net Weight	3.0kg
	Gross Weight	6.6kg
Dimension	Device	480mm x 320mm x 67mm
	Packing	540mm x 380mm x 140mm

Connectivity	Input	4K	Standard	4K-1	2x HDMI 2.0（HDCP2.2）	1x DisplayPort 1.2
				4K-2	2x HDMI 2.0（HDCP2.2）	1x DisplayPort 1.2
		2K	Optional	2K-1	1x 3G-SDI	1x DVI (VGA compatible)
				2K-2	1x 3G-SDI	1x DVI (VGA compatible)
	Output	Standard		4x DVI
		Optional		4x DVI
	Comm	LAN		1x RJ45
		USB		1x USB Type A
		RS232		IN	1x RJ45
				LOOP	1x RJ45
Input Resolution	4K	HDMI 2.0	SMPTE: 480i \| 576i \| 720p \| 1080i \| 1080p \| 4K 1K \| 2160p VESA: 1024x768 \| 1280x720 \| 1280x800 \| 1280x960 \| 1280x1024 \| 1400x1050 \| 1600x1200 \| 1920x1080 1920x1200 \| 2048x1152 \| 2560x1600 \| 3840x1080 \| 3840x2160 \| 4096x2160
		DP1.2	SMPTE: 480i \| 576i \| 720p \| 1080i \| 1080p \| 4K 1K \| 2160p VESA: 1024x768 \| 1280x720 \| 1280x800 \| 1280x960 \| 1280x1024 \| 1400x1050 \| 1600x1200 \| 1920x1080 1920x1200 \| 2048x1152 \| 2560x1600 \| 3840x1080 \| 3840x2160 \| 4096x2160
	2K	3G-SDI	480i \| 576i \|720p \| 1080i \| 1080p \| 1080psf
		DVI	VESA: 800x600 \| 1024x768 \| 1280x1024 \| 1600x1200 \| 1920x1080 \| 1920x1200 \| 2048x1152
Output Resolution		SMPTE	720p@25/30/50/60 11 oaop@23.98/24/25/29.97 /30/50/59.94/60 I 21 Gop@30/50/60
		VESA	800x600@60 I 1024x768@60 I 1280x768@60 I 1280x800@60 11280x1024@60 I 1360x768@60 I 1366x768@60 l1400x900@60 I 1600x1050@60 I 1600x1200@60 l1680x1050@60 I 1920x1080@23.98/24/25/29.97 /30/50/59.94/60 I 1920x1200@60 I 2048x1152@60 I 2560x812@60 I 2560x816@60 I 2560x1600@60 I 3840x1080@60I 3840x2160@23.98/24/25/29.97/30/50/60 I 4096x2160@50/60
Standard Supported		HDMI	1.3 \| 1.4 \| 2.0
		DisplayPort	1.1 \| 1.1a \| 1.2
		DVI	1.0 \| 1.1
		VGA	VGA-UXGA
		SDI	SD-SDI \| HD-SDI \| 3G-SDI
Power Supply		AC 100~264V（Typical 110/220V）
		50/60Hz
		20W
Temp.		-25℃~55℃（Typical 25℃）
Humidity		20%~90%
Weight	Net Weight	3.0kg
	Gross Weight	6.6kg
Dimension	Device	480mm x 320mm x 67mm
	Packing	540mm x 380mm x 140mm
